Lashing

I started with screws and glue, but soon realized that this was not going to work, so I switched to lashing. It didn't take long to realize that this was the way! The lashing is "synthetic sinew", and sold at craft stores.

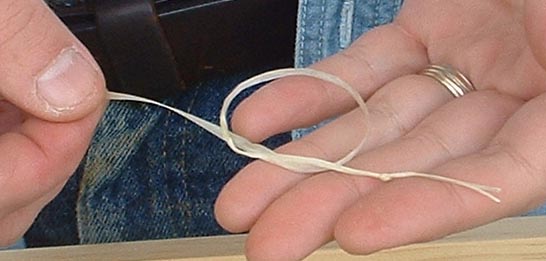

It all starts with a kind of a slip knot called an "Eskimo knot".

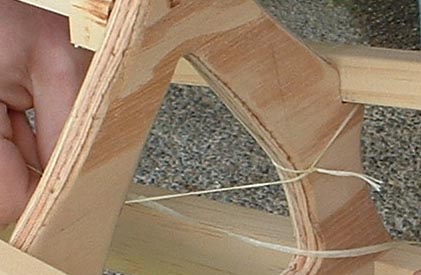

The synthetic sinew knot slips out easily, so it's drawn snug but not too tight (yet).


Once you get the first wrap you can really reef on the cord. I use a leather glove to get it tight. You can see it pull into the wood.

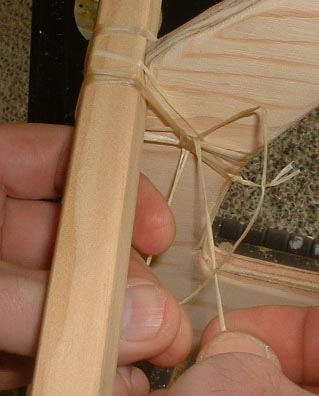

Here I put an awl under the wrappings so I can thread the cord under and around.

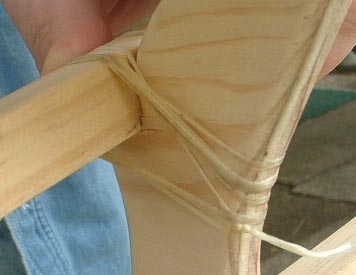

Wrapping the cord around and pulling draws the lashings together, further tightening the joint pieces together.

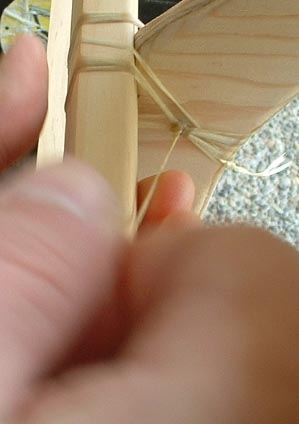

A few hitches finishes it off. I put a knot on the end of the cord just for good measure.

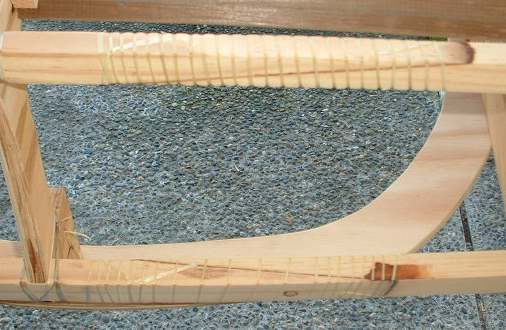

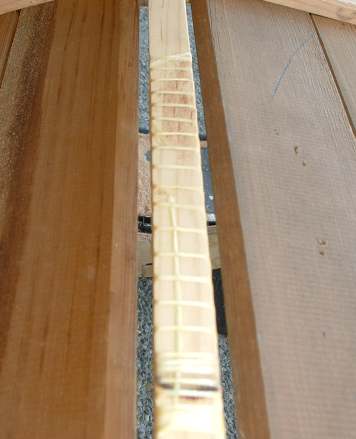

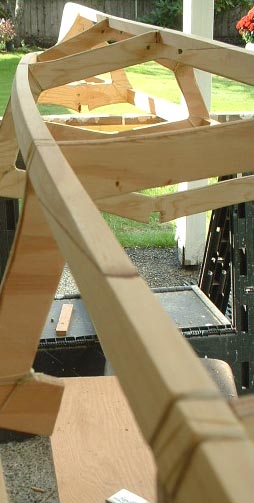

The scarph joints seem to be holding well, but just for good measure I've decided to lash them as well.

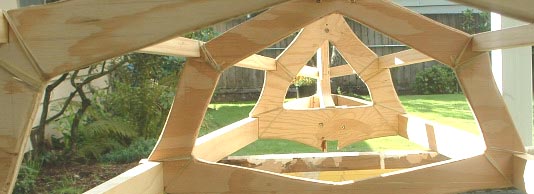

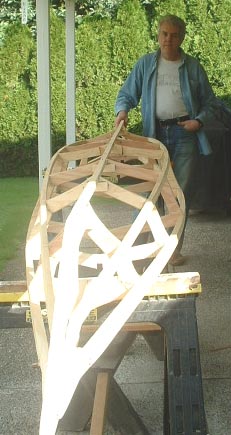

Lashed frames. Much tighter - and faster - than using glue and screws. I was able to do about 1/2 the boat in 3 hrs.



Time out from boat building. We gotta make a paddle »
